Product Overview

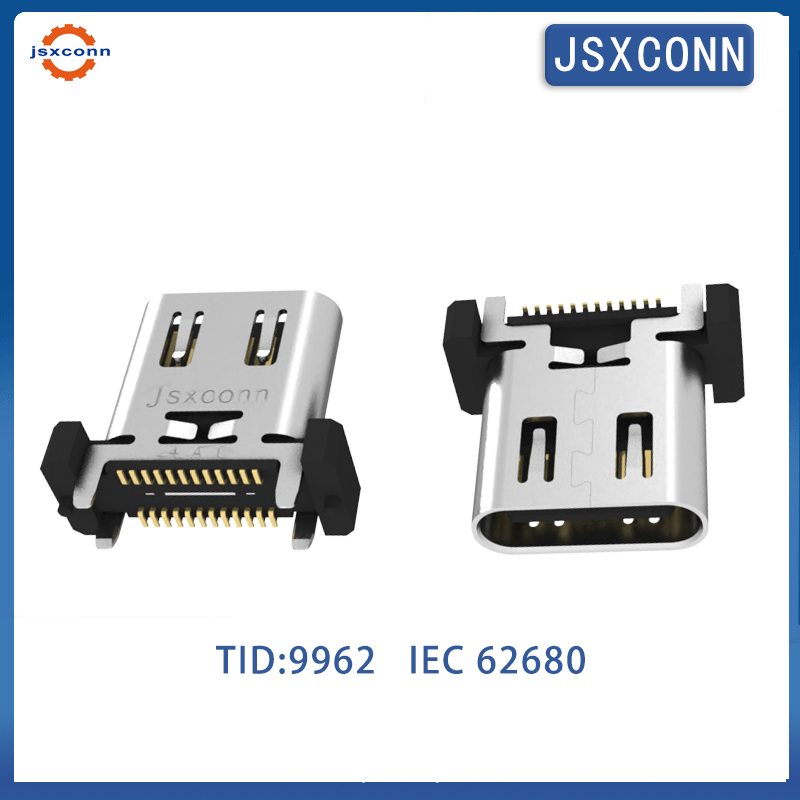

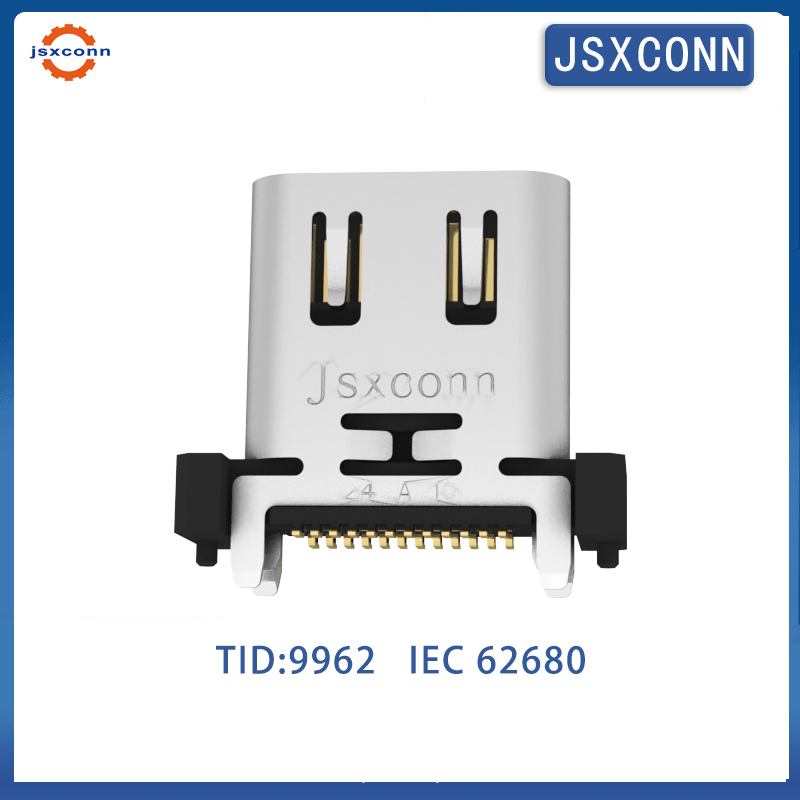

This Vertical USB C Connector (Model: TYPE-C-24P-Vertical-SMT-Connector, H=9.3-15.0-with-Latch) is a high-performance 24-pin SMT-mounted USB Type-C connector, engineered for reliable data transmission and stable power delivery in compact electronic devices. With a vertical design and secure latch mechanism, it’s ideal for PCB assemblies where space optimization and connection stability are critical.

Core Advantages

1.Stable Latch Design: The built-in latch prevents accidental disconnection, ensuring long-term reliability in high-vibration environments like automotive and industrial applications.

2.Space-Saving Vertical Mount: 9.3-15.0mm height and vertical orientation optimize PCB space, perfect for slim devices such as laptops, tablets, and portable electronics.

3.High-Speed & High-Power Performance: Supports 40Gbps data transfer and 100W fast charging, meeting the demands of modern USB Type-C devices.

4.Industrial-Grade Durability: Withstands 10,000+ mating cycles, ensuring long service life even in frequent-use scenarios.

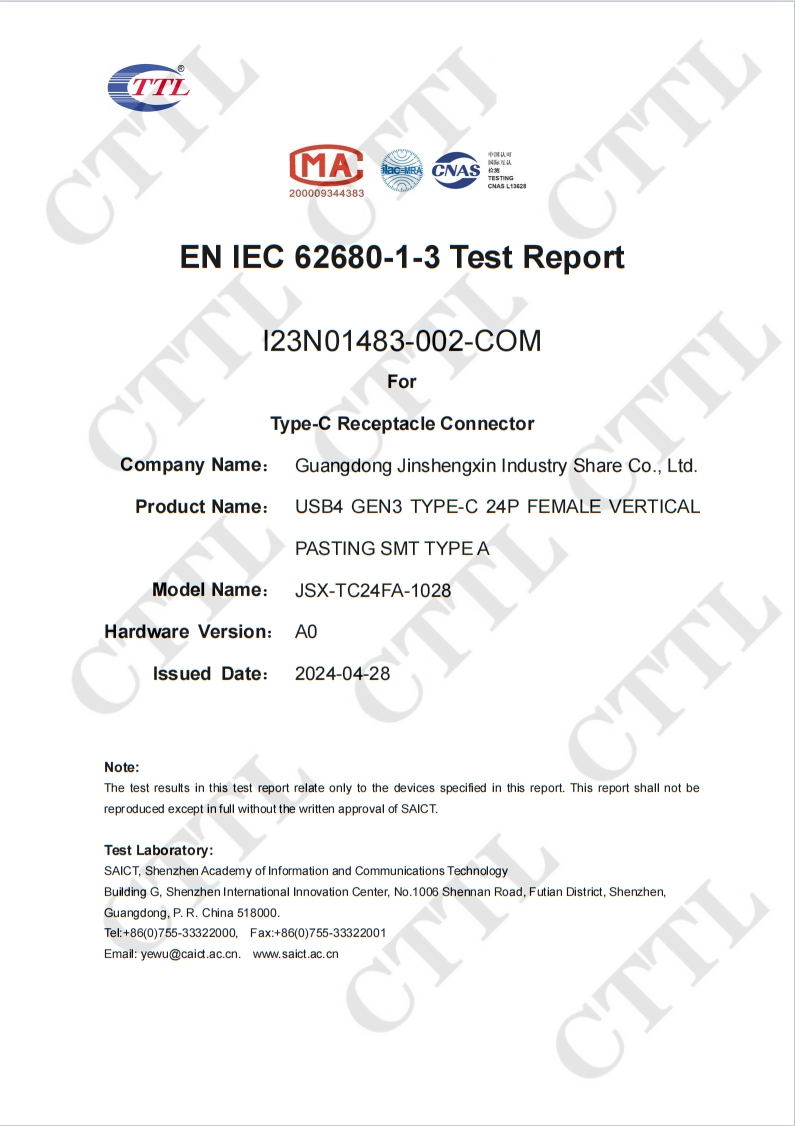

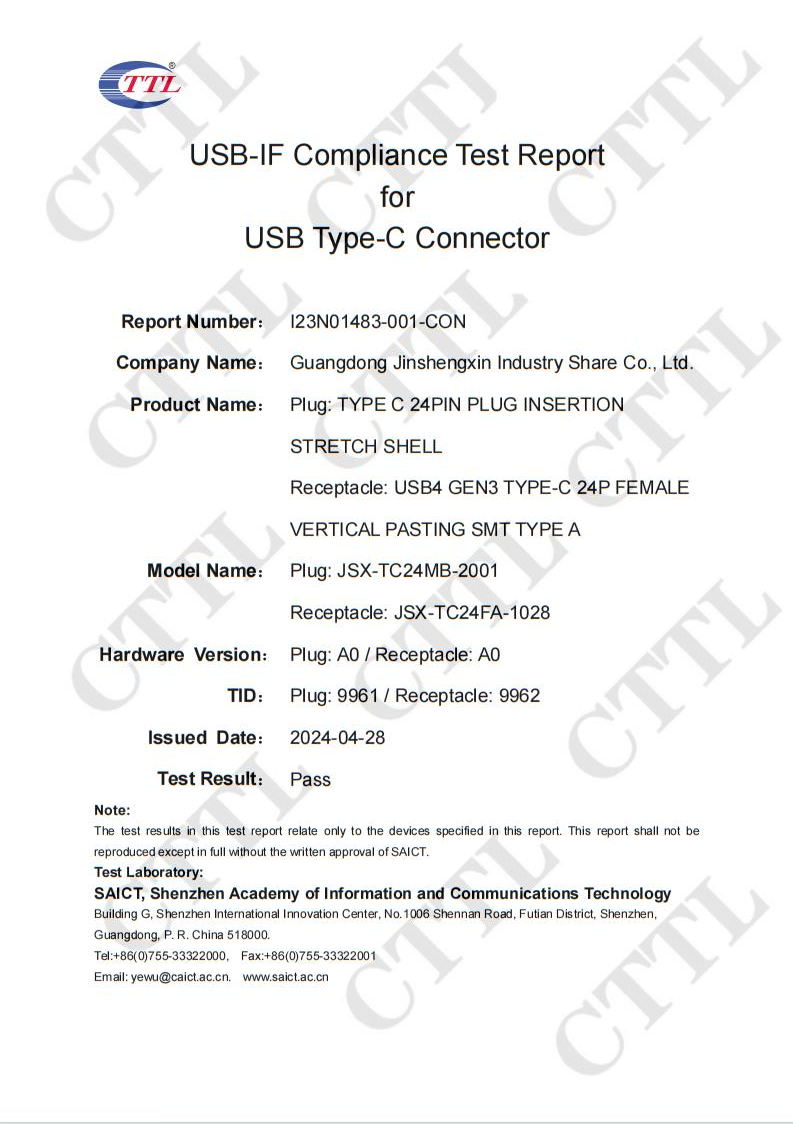

5.Global Compliance: RoHS, REACH, and USB-IF certifications enable seamless access to global markets.
