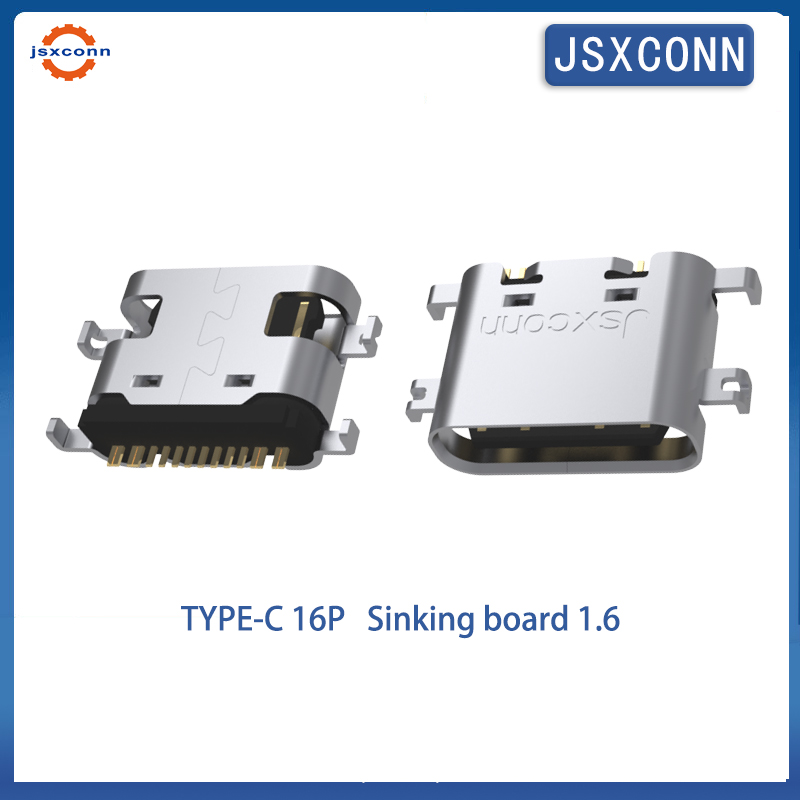

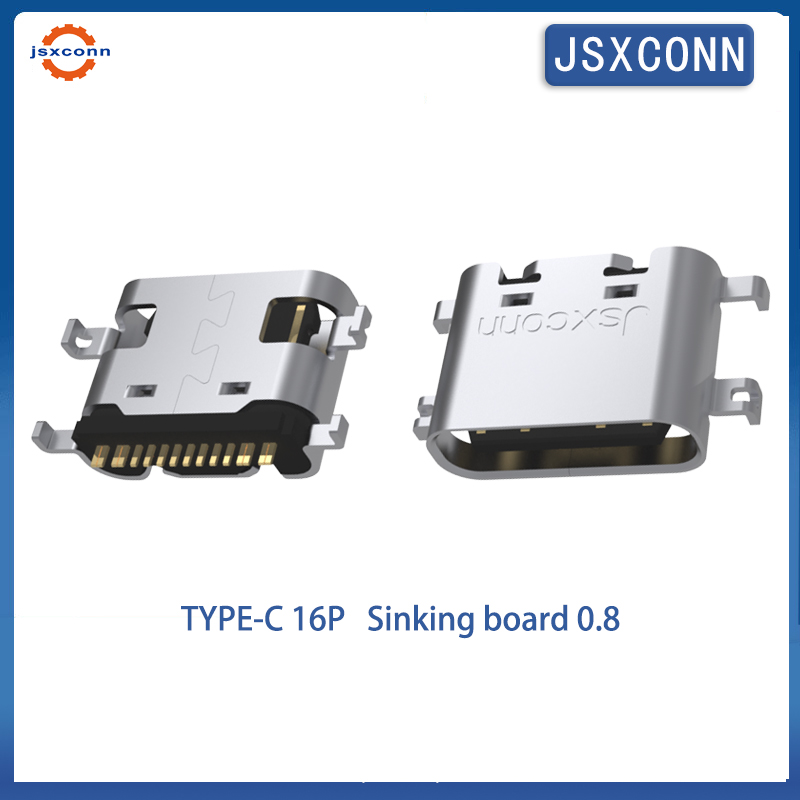

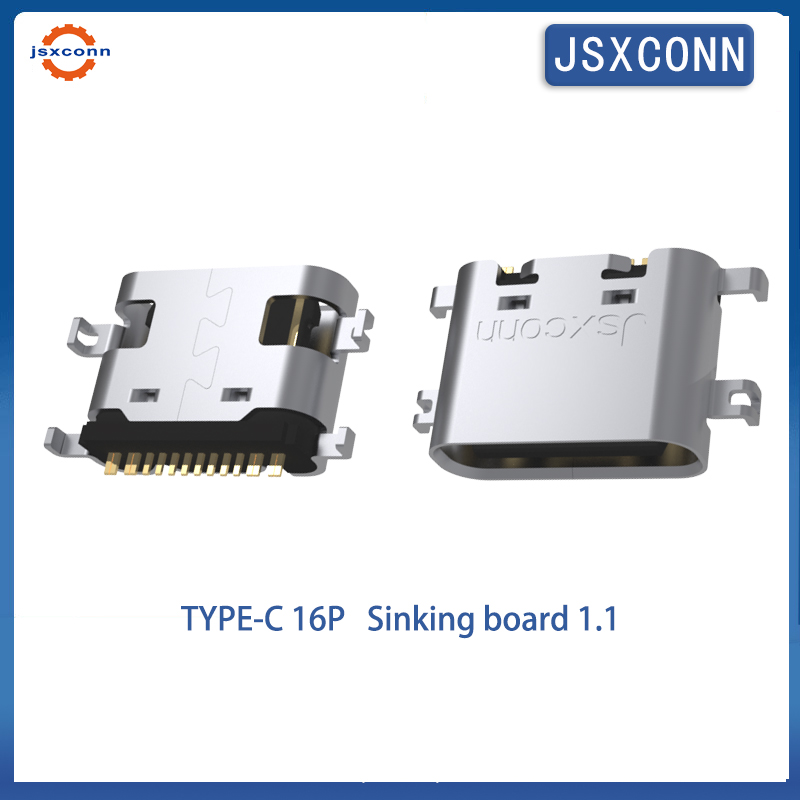

USB Type C 16Pin SMT Sinking board 0.8/1.1/1.6 connector

SHELL MATERIAL: SUS304

TERMINAL: C7025

PLASTIC: LCP UL94V-0

RATED CURREN: 5.0A

USAGE TEMPERATURE: -40℃±85℃

Sinking board: 0.8| 1.1 | 1.6
