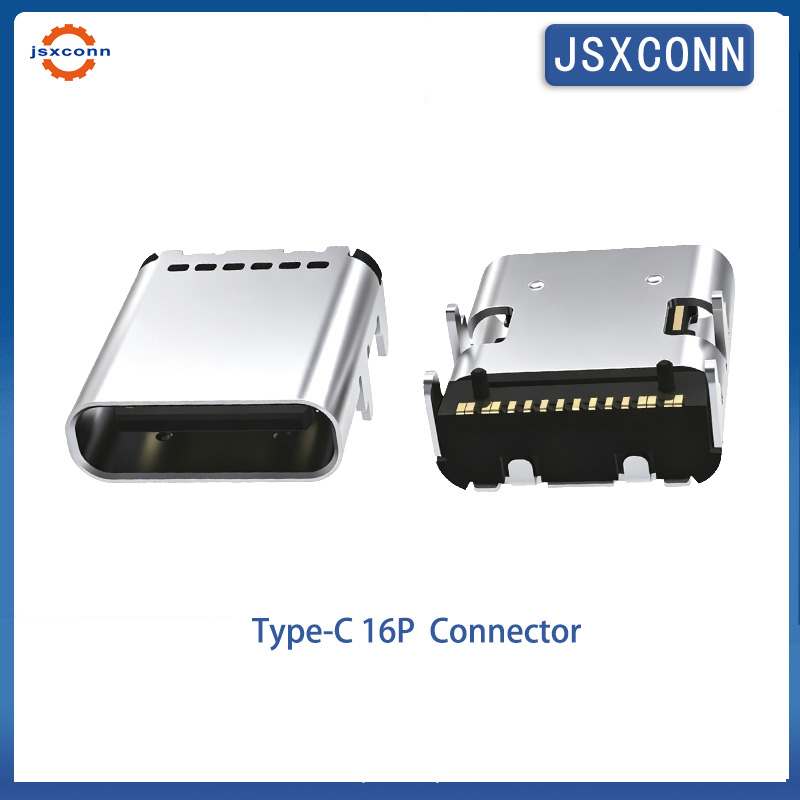

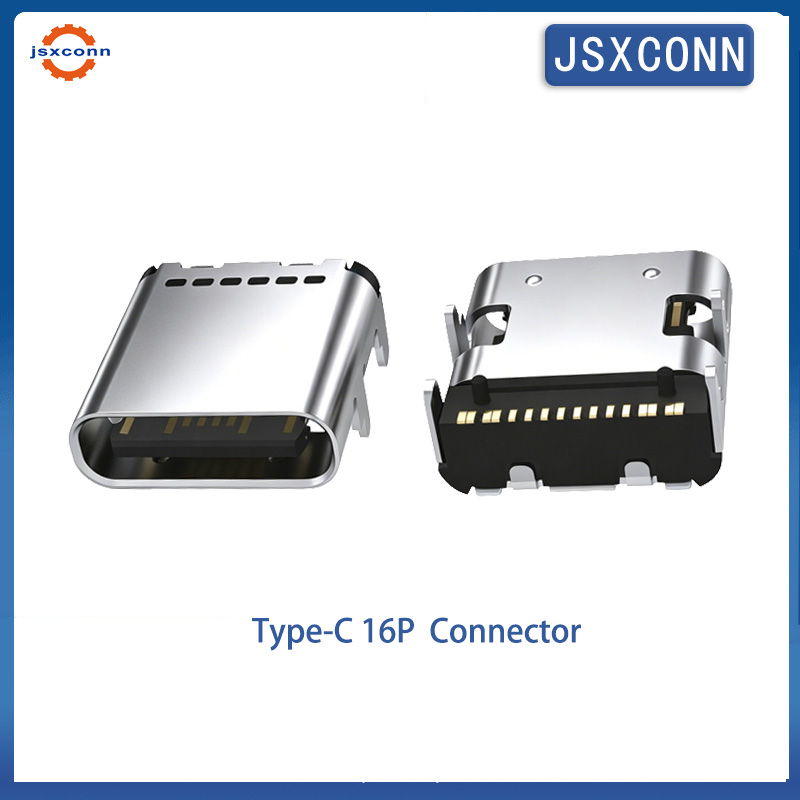

This USB Type-C 16Pin SMT On-Board Female Connector comes with an upgraded extended 4-pin metal shell, offering dual height specifications of 9.0mm and 10.0mm for diverse installation demands. Different from ordinary short-shell Type C receptacles, the four lengthened shell legs offer stronger locking force on the PCB board during SMT reflow soldering, solving displacement and poor welding issues. The complete 16Pin contact layout ensures smooth current conduction and stable data transmission. High heat-resistant LCP material enables the socket to withstand high-temperature SMT processing without deformation. Ideal for power supply modules, portable digital gadgets, smart home devices and other PCB integrated equipment. As a professional connector manufacturer, we provide competitive factory direct prices, custom modification service and consistent quality control for worldwide distributors and brand manufacturers.
