Analysis and Explanation of TYPE-C 24P Side Mount Mother Seat Product

1、 Core Structure and Process Design

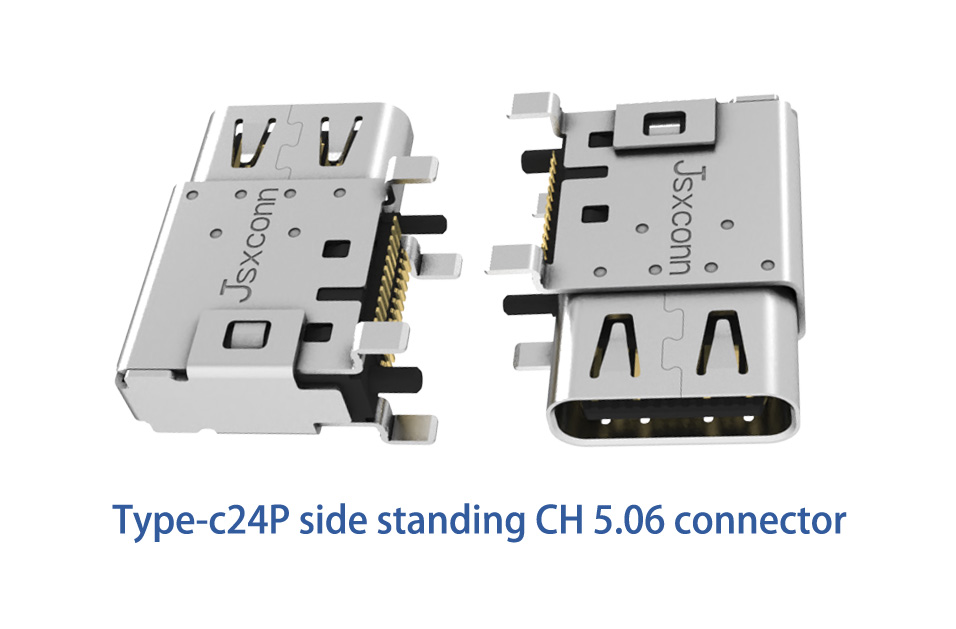

Side mounted SMT packaging

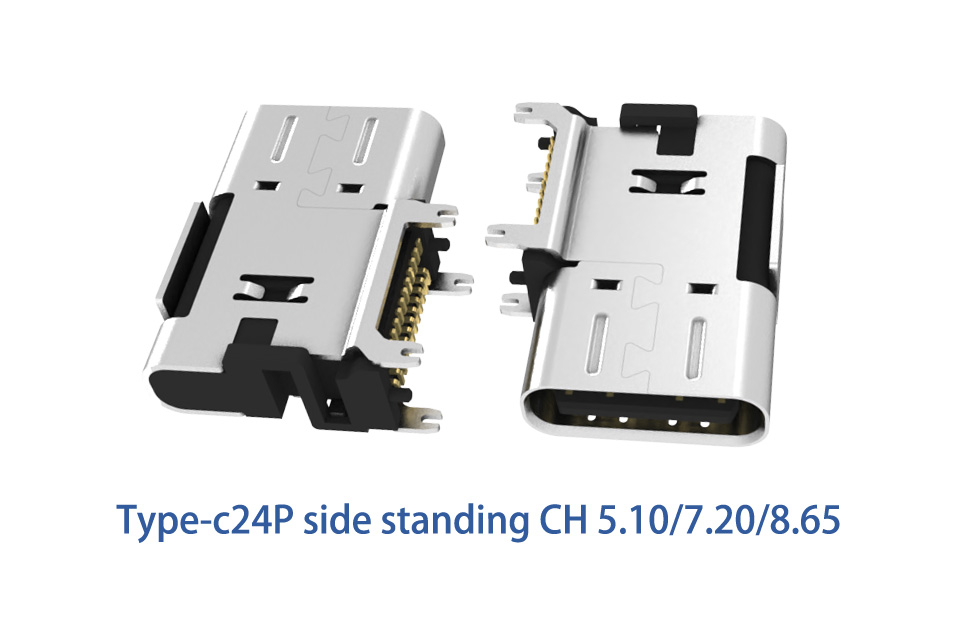

Adopting a dual row 24 pin patch design, it offers three height versions of CH5.1/7.2/8.6, suitable for different device thicknesses (such as ultra-thin laptops and portable hard drives), ensuring a tight fit with the PCB.

The plastic body and stainless steel shell (SUS304) are combined through three molding processes, with a component gap of ≤ 0.3mm, significantly improving mechanical strength and insertion stability

Terminal and protection design

The contact terminal is gold-plated (thickness ≥ 3 μ m), combined with a harpoon foot structure to enhance welding firmness, and supports a lifespan of over 10000 insertions and removals.

Stainless steel shell integrated with electromagnetic shielding layer to suppress high-frequency signal interference (EMI fluctuation rate<5%)

3、 Typical application scenarios

In the field of consumer electronics

Ultra thin notebook: CH5.1/CH7.2 high version compatible with MacBook Air, Huawei MateBook and other models, saving 30% internal space

Mobile Solid State Drive: Supports USB 4.0 speed (tested ≥ 35Gbps), compatible with NVMe hard drives such as Western Digital and Green Link

Industrial and automotive fields

High temperature resistance characteristics (-40 ℃~85 ℃) meet the requirements of industrial control equipment and vehicle charging modules, and waterproof models are suitable for outdoor equipment

Emerging intelligent hardware

VR/AR devices rely on multi-channel high-speed transmission, with a 24 pin dual row design to ensure signal integrity

4、 Market competition and cost-effectiveness

Technical barriers: Triple top molding process and double shell structure enhance product durability, while gold-plated terminals and harpoon feet design form differentiated advantages

Cost effectiveness: Large scale production reduces prices by 15% to 20% compared to international brands such as TE Connectivity, while doubling the plug and unplug lifespan

Market outlook: Driven by the mandatory Type-C interface policy of the European Union/China, the compound annual growth rate is expected to reach 15% from 2024 to 2030

Overall, the TYPE-C 24P side mount female base has become the preferred interface solution for high-end consumer electronics and industrial equipment due to its compact structure, versatile protocol support, and industrial grade reliability.
