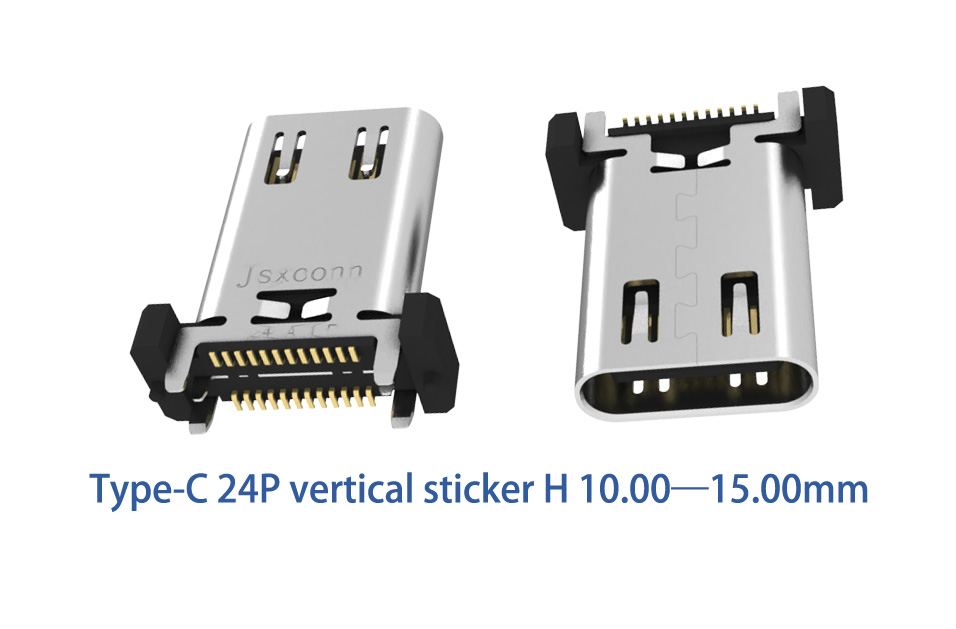

Analysis and Explanation of TYPE-C 24P Stand up Mother Seat Product

1、 Core Structure and Technological Highlights

Vertical SMT packaging design

Support H10.0~15.0mm multi-level height customization (including H10.0/10.5/11.5/12.0/12.4/13.0/14.5/15.0), suitable for ultra-thin laptops

Compact space requirements such as industrial modules require SMT automated surface mount technology to improve production yield to 99.97% and simplify PCB layout complexity.

Terminal and shell reinforcement

Gold plated terminals (C18400 material) combined with LCP plastic casing reduce signal loss and ensure high-speed transmission integrity. SUS304 stainless steel nickel plated casing enhances salt spray corrosion resistance, with a plug-in life of ≥ 10000 times, far exceeding industry standards

Seismic shrapnel structure design to avoid poor contact caused by vibration in vehicle scenarios.

3、 Typical application scenarios

Ultra thin notebook/2-in-1 device: H10.5mm height saves space, supports 65W reverse charging+4K video output.

Mobile hard drive/NAS: 40Gbps speed matched NVMe SSD, measured transmission ≥ 35Gbps

Industrial and Automotive Systems

Vehicle mounted central control screen: With a 12.4mm compression charging module height, it synchronously achieves 100W fast charging and USB 3.1 data transmission.

Industrial robot: H13.0mm version ensures stable transmission of 10Gbps sensor data (such as 8K visual inspection)

Outdoor smart devices

Stainless steel shell with salt spray resistance suitable for outdoor monitoring and exploration equipment, seismic design to cope with mechanical vibration

4、 Market competition and cost-effectiveness

Differentiation advantage: Multi level high customization capability (10.0~15.0mm) accurately matches the industry's miniaturization needs.

Cost control: Large scale SMT production reduces unit price by 15% to 20% compared to international brands, doubling the insertion and extraction lifespan.

Certification barrier: Passed RoHS/REACH environmental standards and EU vehicle electronic access requirements.

TYPE-C 24P Stand up Mother Seat has become the preferred interface for smart cars, high-end consumer electronics, and industrial automation equipment due to its high flexibility, industrial grade reliability, and 40Gbps transmission performance
