In-depth Analysis of Side-Mount Type-C Receptacle: Performance Advantages & Key Selection Points

Side-mount Type-C receptacle adopts side surface mounting structure. It is a category of Type-C connectors with the interface parallel to the PCB. It serves as a core component for optimizing interface layout in ultra-thin electronic devices and compact finished products.

For procurement, prioritize suppliers with full in-house industrial chain and complete qualifications to balance quality, lead time and compliance requirements.

As a professional manufacturer of Type-C receptacles and an official USB-IF member, JinShengXin (brand: JSXCONN) supplies mass-produced side-mount Type-C receptacles to leading clients including Lenovo and BYD, delivering mature solutions validated by large-volume field application across the industry.

一、What Exactly Is a Side-Mount Type-C Receptacle?

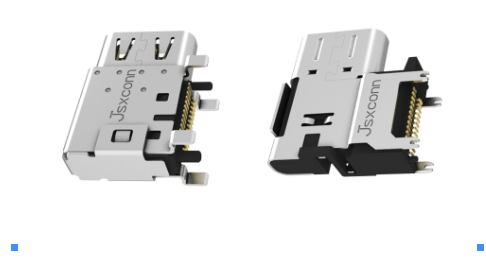

The side-mount Type-C receptacle features side SMT & side insertion mounting design, with the interface oriented parallel to the PCB surface. It is a specialized variant within the Type-C connector family engineered for compact and ultra-slim device structures.

Unlike commonly seen vertical-mount and recessed-mount types, the side-mount Type-C receptacle requires no PCB through-holes or cutouts. Its terminals are mounted along the edge of the PCB during soldering, reducing the vertical space occupation of the device port area by over 40%.

The product lineup includes 14P/16P fast-charging versions and 24P full-function versions. It supports 5A–10A PD fast charging as well as 40Gbps high-speed data transmission, with no compromise on electrical performance despite the compact structural design.

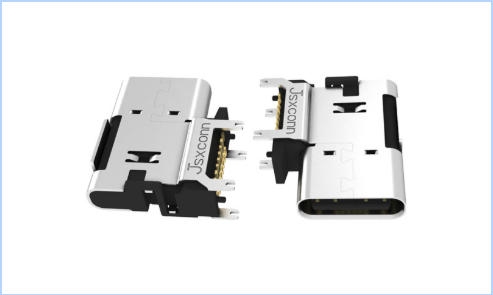

Type-C 24p Side Mount

II. Core Quality Advantages of Qualified Side-Mount Type-C Receptacles

High-quality side-mount Type-C receptacles derive their core strengths from full-chain control covering materials, manufacturing processes and testing, rather than structural design alone. I have communicated with nearly 20 purchasing customers in consumer electronics and automotive sectors. Common issues they encountered with low-cost suppliers include loose tongues after only hundreds of mating cycles and insulator warpage after reflow soldering.

JSXCONN side-mount Type-C receptacles from JinShengXin adopt SUS304 stainless steel shells, C7025 / C18400 high-conductivity copper terminals and high-temperature resistant LCP insulators. Gold plating thickness at contact areas is optional from 3μ" to 30μ". The connectors achieve mating durability ≥10,000 cycles, contact resistance ≤40mΩ, and stable performance under wide temperature conditions ranging from -40℃ to 85℃.

Backed by in-house full industrial chain capabilities including mold development, metal stamping, injection molding and fully automatic assembly, we control quality and lead time from the source. All products undergo 100% dimensional and electrical inspection via automatic CCD visual testing.Our factory holds IATF16949 automotive certification, ISO14064 greenhouse gas certification and RoHS compliance certification, enabling cooperation with automotive electronics clients and supporting export business.

We currently supply side-mount Type-C connectors in volume to customers such as DJI and ZTE, with vibration resistance verified under actual automotive operating conditions.

3. Primary Application Fields for Side-Mount Type-C Receptacles

The space-saving merit of side-mount Type-C receptacles defines its primary adoption in four core markets demanding slim device profiles and compact mechanical layout.

First, ultra-thin consumer digital products, including portable SSD enclosures, slim power banks and TWS earbud charging cases, enabling device thickness to be limited within 8mm.

Second, lightweight computer peripherals such as portable docking stations, side ports for ultrabooks and portable monitors. No extra vertical clearance needs to be reserved for connectors.

Third, automotive electronics like side ports of vehicle central control units and dashcams. The side SMT structure delivers superior soldering strength and outstanding resistance to vibration during vehicle operation.

Fourth, portable industrial equipment, including handheld testing instruments and mobile scanning terminals. The compact design fulfills both fast charging and high-speed data transmission requirements simultaneously.

IV. Practical Selection Guide for Side-Mount Type-C Receptacles

When sourcing side-mount Type-C receptacles, there is no need to blindly purchase high-spec overpriced models. A cost-effective solution can be selected by matching requirements from three dimensions.

First, function matching. The 16P fast-charging version suffices if only power charging is required, with around 30% lower cost compared to the 24P variant. Choose the 24P full-function version only when high-speed data transmission and video output are needed.

Second, qualification standards. Prioritize products manufactured by USB‑IF member enterprises. Verify certifications such as IATF16949 and RoHS to prevent certification obstacles for export and automotive-grade projects at a later stage.

Third, delivery capacity. Select suppliers equipped with fully automatic production lines and ready stock. JinShengXin side-mount Type-C receptacles support free samples and tape-and-reel packaging compatible with automatic SMT placement machines. Standard models can be shipped within 72 hours.

If you have upcoming procurement demands for side-mount Type-C receptacles, you are welcome to apply for free test samples of JSXCONN (JinShengXin). Conduct practical testing to confirm suitability before mass purchasing, which can significantly reduce trial and error costs during component selection.
